Overview
"Advanced Technologies, user-friendly design, and cost-efficient solutions combine to deliver exceptional value and performance.

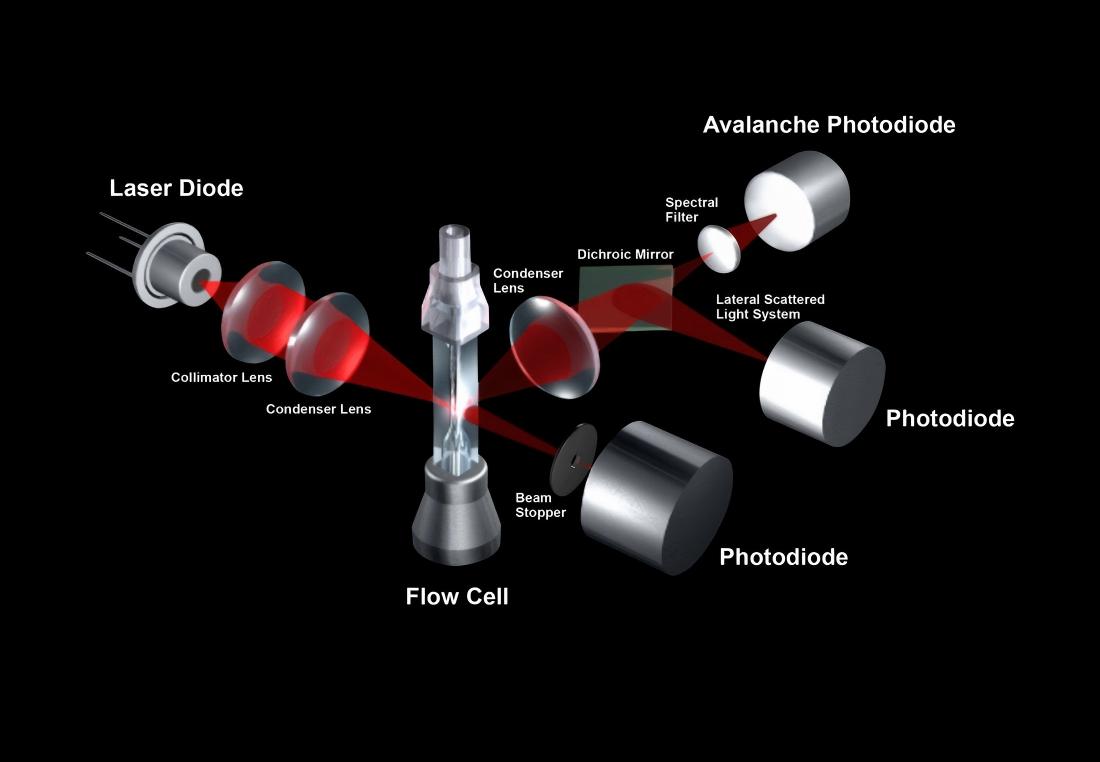

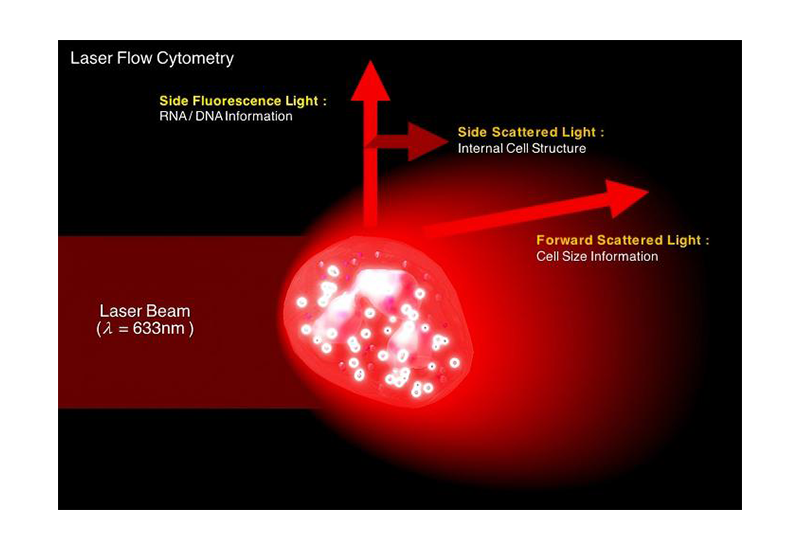

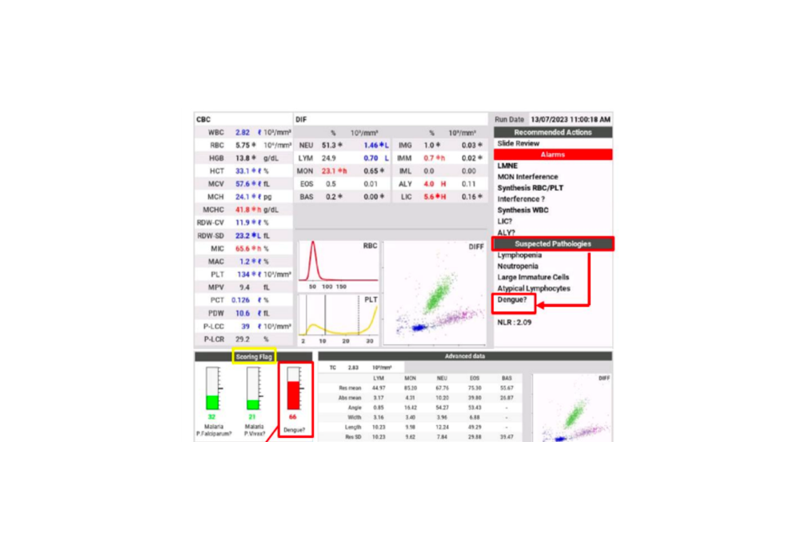

The next-generation analyzer MH 60 series provides high quality test results using FCM + nucleic acid fluorescence staining three-dimensional analysis technology.Compared with traditional chemical dyeing, this technique can detect more parameters including IG and PRBC (RBC infected with Plasmodium count ), helping early screening of Malaria and assisting diagnosis of Dengue Fever .
User-friendly design .The 17.3-inch touchscreen is more convenient . Ultra-low sample volume (15μL for CBC+DIFF) minimize patient discomfort .Lower reagent consumption deliver long-term savings.
60T/H
Throughput
CBC+DIFF 15ul
Sample Volumn
Immature granulocytes
Malaria Screening
2 3D
Scattergrams
Advantage
FCM&Fluorescent staining
6-part Hematology analyzer
Less blood sample
CBC+DIFF 15ul
Recognize IG
and screen for Malaria
Small size,
cost efficient
Major Parameters

Analysis Principle:

DIFF:FCM,Fluorescent staining of NucleicAcid
WBC-BASO: FCM,Optical counting of NRBC,WBC,BASO
RBC/PLT counting: Impedance
Hemaglobin: Colorimetry

Report Parameters:

28 report parameters and 32 research parameters
3 histograms,6 2D scattergrams,2 3D scattergrams




Measurement Mode CBC、CBC+DIFF
Sample Type Venial blood, capillary blood, Pre-dilution samples
Throughput  CBC: 60T/H ,CBC+DIFF: 60T/H
Sample Loading Manual-open sample
Sample volumn CBC+DIFF 15ul
Dimensions 328 (W) x 405 (D) x 434 (H) mm, ≤24kg
