The MH 60 series analyzer delivers reliable and high-quality test performance through its advanced FCM + nucleic acid fluorescence staining technology.
Equipped with a 17.3-inch touchscreen interface, the system offers user-friendly operation. It features an ultra-low sample volume requirement (15µL for CBC+DIFF), which helps minimize patient discomfort.
The platform is designed to provide comprehensive test parameters, including IG and PRBC, to support various laboratory testing needs. With its efficient reagent consumption design, the MH 60 series also enables cost-effective operations for long-term savings.
60T/H
Throughput
CBC+DIFF 15ul
Sample Volumn
Immature granulocytes
Supports laboratory testing
2 3D
Scattergrams
Advantage
FCM & fluorescent staining technology
6-part differential hematology analyzer
Low sample volume requirement
15µL for CBC+DIFF testing
Capable of identifying IG parameters to
support relevant laboratory applications
Compact design with optimized reagent
usage for cost-effective operation

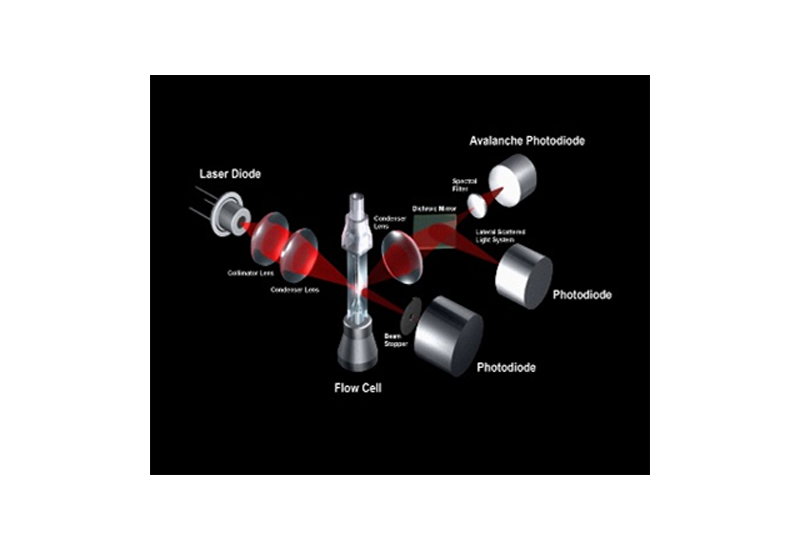

FCM & Nucleic acid fluorescence staining

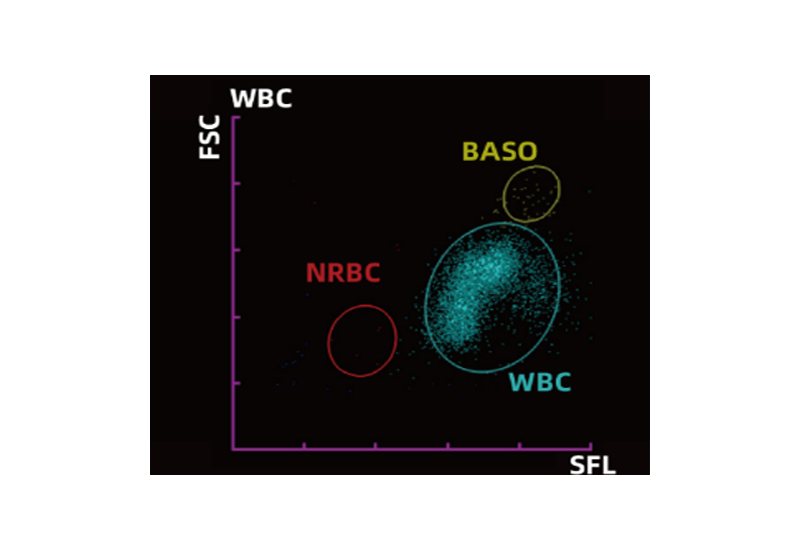

WBC channel:NRBC,BASO

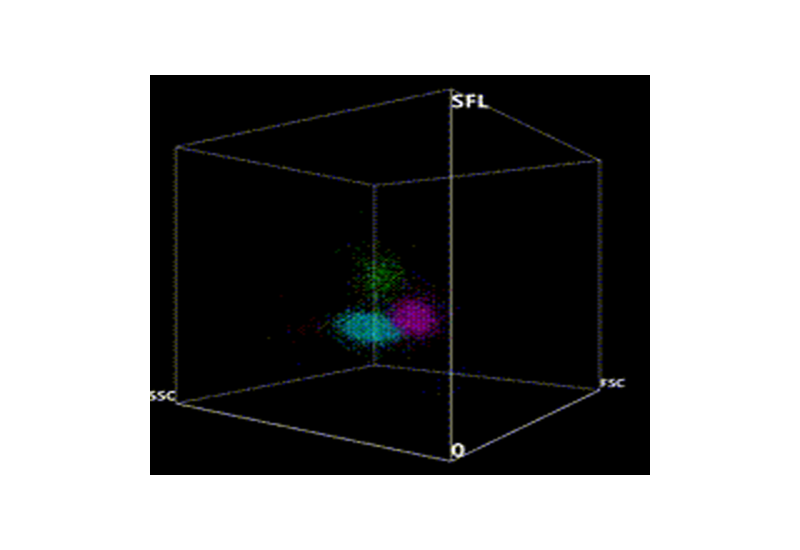

3D scattergram
Flow cytometry
Major Parameters

Analysis Principle：

DIFF:FCM,Fluorescent staining of NucleicAcid
WBC-BASO: FCM,Optical counting of NRBC,WBC,BASO
RBC/PLT counting: Impedance
Hemaglobin: Colorimetry

Report Parameters：

28 report parameters and 32 research parameters
3 histograms,6 2D scattergrams,2 3D scattergrams




Measurement Mode CBC, CBC+DIFF
Sample Type Venial blood, capillary blood, Pre-dilution samples
Throughput  CBC: 60T/H ,CBC+DIFF: 60T/H
Sample Loading Manual-open sample
Sample volumn CBC+DIFF 15ul
Dimensions 328 (W) x 405 (D) x 434 (H) mm, ≤24kg
